SES - Dimmers at SES Entertainment Service Ltd

 Dimmers

We are the sole UK distributors for PLS Electronics, based in Hungary. PLS are a leading manufacturer of dimmers and DMX control systems. We have an excellent relationship with them and have jointly developed new products.

 The different types of dimmers that we provide and the specifications are:


TourDim60

TourDim60: Supplied in a Tourgade Flightcase. Incoming Powerlock overall protection via 250A 4P MCCB fitted with shunt trip operated by variable time and sensitivity earth leakage relay with key switch disable. Overall multimeter, USB charger, dedicated input DMX connector. Racklights front, back, and top, switchable blue/off/white. Aux 32A/3 and 16A/1 each with RCBO. 12 x Hard Power channels each with 16A 30mA RCBO feeding 12 x Wieland Patch connector. 4 x FLX Units each with 12 x 3.7kW channels able to operate as full spec dimmer/dmx operated relay switched hot power/permanent hard power. Each channel with 16A 30mA RCBO feeding 2 x Wieland patch female connectors. 16 x Soca female and 4 x 16A/1 out fed from 96 Wieland patch male connectors. Space for 1U Split 7 DMX splitter.

TourDim24: Supplied in a Tourgrade Flightcase. Incoming Powerlock overall protection via 125A 4P MCB. Dedicated input DMX connector. Racklights front and back, switchable blue/off/white. AUX 32A/3 and 16A/1 each with RCBO. 2 x FLX Units each with 12 x 3.7kW channels able to operate as full spec dimmer/dmx operated relay switched hot power/permanent hard power. Each channel with 16A 30mA RCBO. Output via 8 x Soca female out. Dimmer channels bi-split.

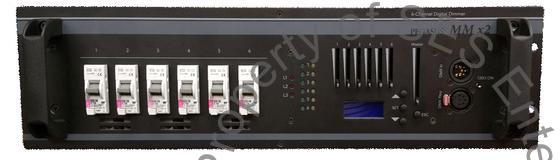

6 Channel FilmDim: Mains input via rubber cable with 5P plug. Easy menu control with four push buttons and blue LCD. Control signalsindicated by green LEDs. Global DMX address set or SoftPatch. Individually selectable parameters per channel, preheat/maximum level/control curves/DMX address.Test function to chack individual channels, and a user editable 16 scene memory for standalone mode. Overheat protection. 63A/1 in and 6 x 16A out with parrallel Soca.

3 Channel FilmDim:63A/1 in with 3 x 32A out. Spec is a smaller version of the 6 channel FilmDim, so refer to this product for the full specification details.


3 Channel

Mini Master; Available in 6 x 2.3kW, 6 x 3kW, 6 x 3.7kW and 3 x5.7kW models. DMX or local control via illuminated sliders. These are ideal for Film and TV applications where lighting levels need to be adjusted manually.

X-Lite;Available in 12 x 2.3kW, 12 x 3.7kW and 3 x 15kW models The X-Lite is the semi-professional ‘big brother’ of the Mini master. These units are designed for either touring or small theatres and auditoriums.

Pro 2;Available in 12 x 2.3kW, 6 x 5.7kW, this is the top end of the range with a host of features only found on more expensive units from our competitors. It has Led's for trigger level and output level monitoring, with a user friendly menu system with LCD screen. Individually adjustable parameters for each channels, and a 16-step user editable screen memory. There is a DMX recording option with adjustable fade-in and out times for memory playback.

MD1;63A/1 unit with 15kW dimming capacity, a low noise internal fan, and a robust lightweight aluminium body, this portable single channel digital dimmer is designed specifically for the film and TV industry. It also has LED's for trigger level and output level monitoring, with DMX or local controlling.

Rig Dim;This dimmer can be very easily mounted to trusses and comes in four different models. The power input via a rubber cable. A global DMX start address is set on seven segment display push buttons and a test funtion to check operation and loads.




TourDim24

MD1;63A/1 unit with 15kW dimming capacity, a low noise internal fan, and a robust lightweight aluminium body, this portable single channel digital dimmer is designed specifically for the film and TV industry. It also has LED's for trigger level and output level monitoring, with DMX or local controlling.

Rig Dim;This dimmer can be very easily mounted to trusses and comes in four different models. The power input via a rubber cable. A global DMX start address is set on seven segment display push buttons and a test funtion to check operation and loads.

HandyOne:

There are a number of additional products manufactured by PLS, please see their website for details or contact our sales office.
